Combination Units
2 piece units: filter/regulator + lubricator
3 piece units: filter + regulator + lubricator
RETURN TO MAIN PRODUCTS
Choose a product from the drop down menu or from the chart below to learn more:
| 2 UNIT |
| D03 Series |
Port Sizes: 1/8, 1/4; Flows to 20 SCFM |
D08 Series
Modular
Updated! |
Port Sizes: 1/4;
Flows to 28 SCFM |
D18 Series
Modular
Updated! |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 90 SCFM |
D28 Series
Modular
Updated! |
Port Sizes: 3/8, 1/2, 3/4;
Flows to 150 SCFM |
| 3 UNIT |
C03 Series
Modular |
Port Sizes: 1/8, 1/4;
Flows to 20 SCFM |
C08 Series
Modular
Updated! |
Port Sizes: 1/4;
Flows to 27 SCFM |
| C16/C17 Series |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 64 SCFM |
C18 Series
Modular
Updated! |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 85 SCFM |
| C26/C27 Series |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 128 SCFM |
C28 Series
Modular
Updated! |
Port Sizes: 3/8, 1/2, 3/4;
Flows to 110 SCFM |
| C31 Series |
Port Sizes: 3/4, 1; Flows to 374 SCFM |
|
|

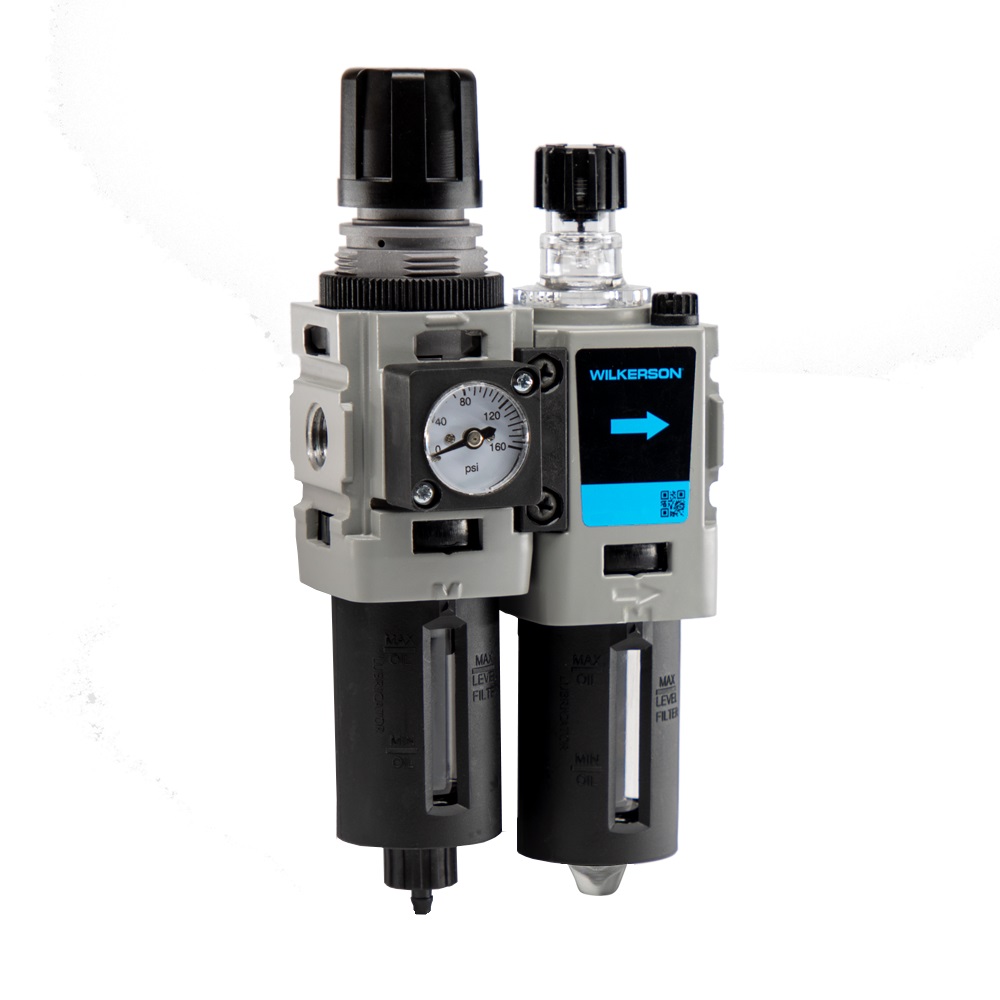

D08 Series
MODULAR
Port Sizes 1/4; Flows to 28 SCFM
Features
This 2 Unit FRL includes:
- Components Integrated into Single Unit
- Modern Design and Appearance
- Light Weight, Ready-to-Mount Assembly Comes Standard
with Flush-Mount Pressure Gauge and Modular
T-Bracket / Joiner Assembly
- High Flow Capacity
- Quick-Disconnect Bowl / Bowl Guard
Specifications
Flow Capacity* | 1/4" | 29 SCFM (14 dm3/s, ANR) |
Maximum Supply Pressure | Plastic Bowl | 150 PSIG (10.3 bar) |
Metal Bowl | 250 PSIG (17.2 bar) |
Operating Temperature | Plastic Bowl | 14° to 125°F (-10° to 52°C) |
Metal Bowl | 14° to 150°F
(-10° to 65.5°C) |
Port Size | NPT / BSPP-G | 1/4 |
Gauge Port (2 ea.)** | NPT | 1/8 | Standard Filtration | 5 Micron |
Weight | 1.43 lb. (0.6 kg) |
* Inlet pressure 145 PSIG (10 bar), Secondary pressure 91.3 PSIG (6.3 bar), 14.5 PSIG (1 bar) pressure drop.
** Non-gauge option only.
"F" Series Filters, Type "A" 5 micron elements: All Wilkerson Type "A"
5 micron elements meet or exceed ISO Class 3 for maximum particle size and concentration of solid contaminants. |
|
|
