Combination Units

2 piece units: filter/regulator + lubricator
3 piece units: filter + regulator + lubricator

RETURN TO MAIN PRODUCTS


Choose a product from the drop down menu or from the chart below to learn more:


2 UNIT
D03 Series Port Sizes: 1/8, 1/4; Flows to 20 SCFM
D08 Series
Modular
Updated!
Port Sizes: 1/4;
Flows to 28 SCFM
D18 Series
Modular
Updated!
Port Sizes: 1/4, 3/8, 1/2;
Flows to 90 SCFM
D28 Series
Modular
Updated!
Port Sizes: 3/8, 1/2, 3/4;
Flows to 150 SCFM
D39 Series
Modular
Port Size: 1;
Flows to 250 SCFM
3 UNIT
C03 Series
Modular
Port Sizes: 1/8, 1/4;
Flows to 20 SCFM
C08 Series
Modular
Updated!
Port Sizes: 1/4;
Flows to 27 SCFM
C16/C17 Series Port Sizes: 1/4, 3/8, 1/2;
Flows to 64 SCFM
C18 Series
Modular
Updated!
Port Sizes: 1/4, 3/8, 1/2;
Flows to 85 SCFM
C26/C27 Series Port Sizes: 1/4, 3/8, 1/2;
Flows to 128 SCFM
C28 Series
Modular
Updated!
Port Sizes: 3/8, 1/2, 3/4;
Flows to 110 SCFM
C31 Series Port Sizes: 3/4, 1; Flows to 374 SCFM
C39 Series Port Size: 1; Flows to 250 SCFM

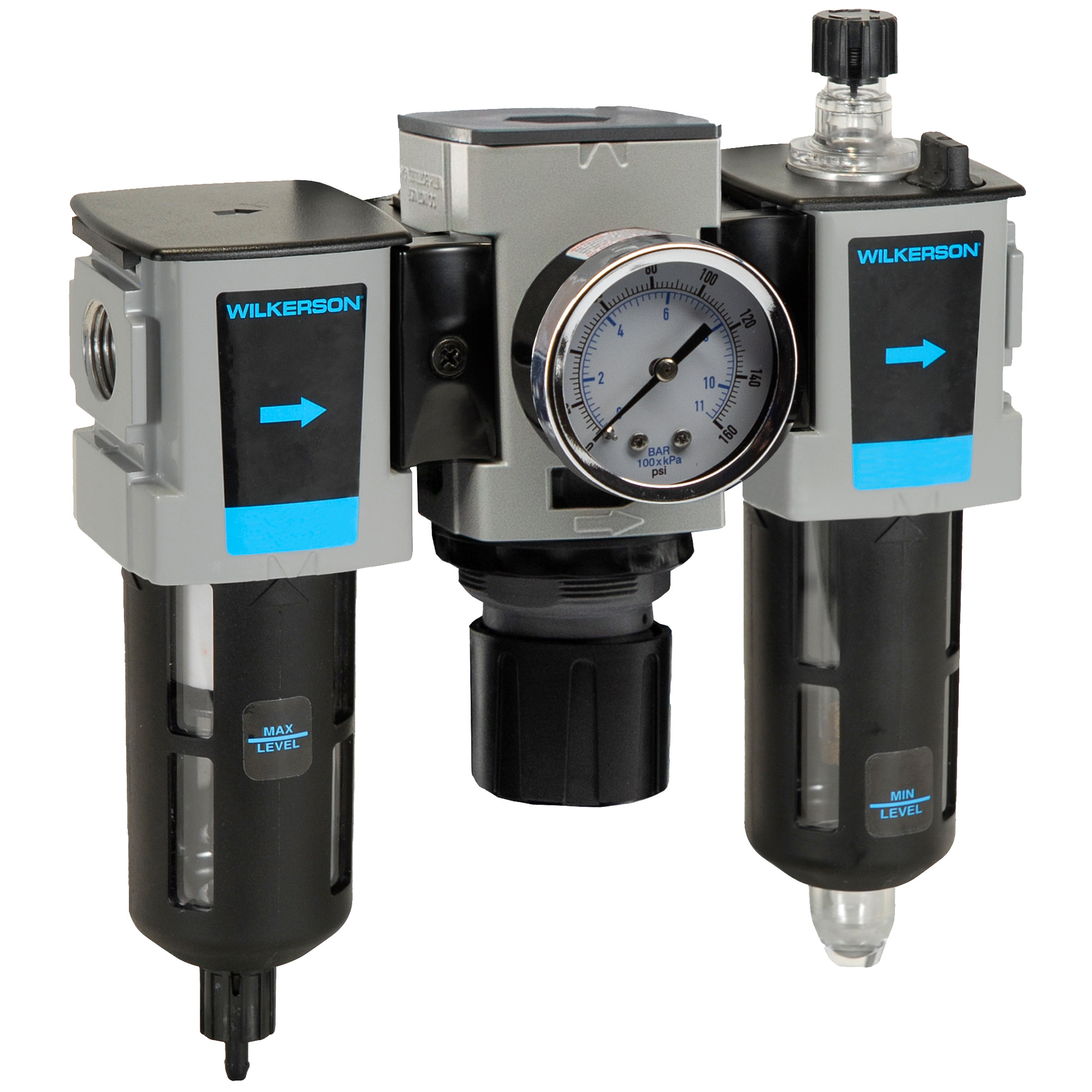

C18 Series

MODULAR
Port Sizes 1/4, 3/8, 1/2; Flows to 85 SCFM

C18 Series - combination units View Catalog
Part Number Configurator

Features

This modular particulate filter includes:

  • Components Integrated into Single Unit
  • Modern Design and Appearance
  • Light Weight, Ready-to-Mount Assembly Comes Standard
    with Pressure Gauge and Modular T-Bracket / Joiner Assembly
  • High Flow Capacity
  • Quick-Disconnect Bowl / Bowl Guard

Specifications

Flow Capacity*

1/4"

42 SCFM (20 dm3/s, ANR)

3/8"

68 SCFM (32 dm3/s, ANR)

1/2"

85 SCFM (40 dm3/s, ANR)

Maximum Supply Pressure

Plastic Bowl

150 PSIG (10.3 bar)

Metal Bowl

250 PSIG (17.2 bar)

Operating Temperature

Plastic Bowl

-13° to 125°F (-25° to 52°C)

Metal Bowl

-13° to 150°F
(-25° to 65.5°C)

Port Size

NPT / BSPP-G

1/4, 3/8, 1/2

Gauge Port (2 ea.)

NPT / BSPP-G

1/4

Standard Filtration

5 Micron

Weight

4.04 lb. (1.83 kg)

* Inlet pressure 145 PSIG (10 bar), Secondary pressure 91.3 PSIG (6.3 bar), 14.5 PSIG (1 bar) pressure drop.

"F" Series Filters, Type "A" 5 micron elements: All Wilkerson Type "A"
5 micron elements meet or exceed ISO Class 3 for maximum particle size and concentration of solid contaminants.
